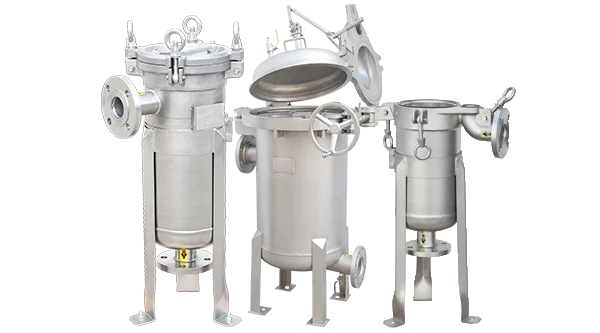

Bag Filter Filtration Systems

In today’s industrial environment the importance of filtration is vital to keeping equipment running at its maximum capacity and minimising production downtime due to poor cleanliness levels.

BF Bag Filters are designed for liquid fine filtration. Bag filters have the advantages of processing viscous liquid, a wide range of flow rate, economical filter media consumption. Besides our standard products range, BF can be designed and manufactured to customized configuration. Various filtration efficiency and materials of filter bags are also developed to suit different process conditions.A variety of bag filters available. Contact KPL Filtration now to order your filters

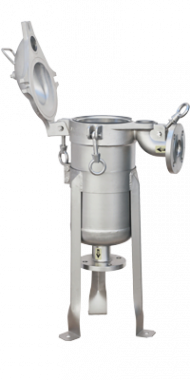

BF003

Single bag filter series – BFT Series

Single Bag Filter Series features over-the-top flowing-in design. It is the single bag filter with the best structure. Its absolute bag sealing design makes it ideal for the absolute high filtration degree applications. The solid structure delivers high safety and durability. The BFT series bag filter is designed for the most demanding applications.

Design Pressure:

10 Bar/147 PSI
16 Bar/235 PSI

Flow Rate:

100 L/min –

416 L/min

Filtration Rate (um):

1-2000 um

Housing Material:

SS 304/316

BF002

Side-in single bag filter series – BFS Series

BFS Series – Side-in single bag filter is manufactured referring to the GB150 pressure vessel standard. The high strength structure delivers absolute high safety when filtering dangerous liquids. It is an ideal and durable for all demanding applications. The housing design pressure is high up to 2.0MPa. Various inlet and outlet sizes and layouts are optional for convenient installation.

Design Pressure:

10 Bar/147 PSI
16 Bar/235 PSI
20 Bar/294 PSI

Flow Rate:

100 L/min –

416 L/min

Filtration Rate (um):

1-2000 um

Housing Material:

SS 304/316

BF001

Multi-bag filter series – BFR/BFM Series

BFR Series – Quick-open multi-bag filter is particularly designed for end users focused operational efficiency, safety, and durability. It is suitable for the filtration of high contaminate liquids, frequent filter bag change-out applications, or 24-hour continuous production requiring quick filter switching and cleaning. The BFR filter is an excellent solution to greatly improve filtration operation efficiency. It makes the filter change-out quicker and greatly reduces the labour intensity.

Design Pressure:

7 Bar/103 PSI
10 Bar/147 PSI

Flow Rate:

1200 L/min –

4800 L/min

Filtration Rate (um):

1-2000 um

Housing Material:

SS 304/316
