Bypass Filtration Units

Continuous filtration solution

Maximise equipment reliability and minimise production downtime, by having a KPL bypass unit filtering the lubricant in your system

Fixed Filtration
solution

Setup & training
  • User friendly and low maintenance
  • Ideal for remote equipment or remote locations
  • Readily available filters and consumables for purchase
  • Electric and Pneumatic units available

Fixed filtration
& Maintenance

setup & Ongoing support
  • User friendly and low maintenance
  • Ideal for remote equipment or remote locations
  • Readily available filters and consumables for purchase
  • Electric and Pneumatic units available
  • Ongoing technical product support
  • Preventative maintenance plan support
total
solution

Service Contact with questions

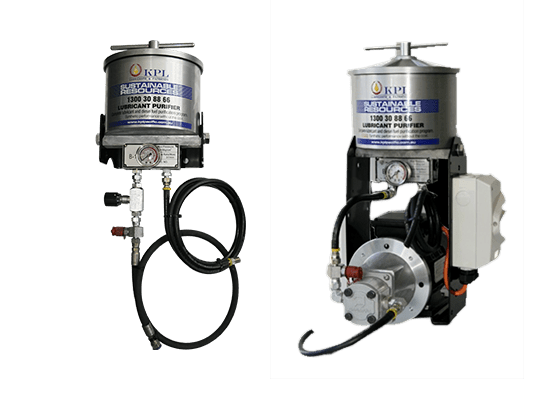

Bypass Filtration Units APPLICATIONS​

The bypass filtration units are fixed to operational equipment and designed to operate continuously, circulating the lubricant through the unit’s filter. The MB100MKII Unit may also be configured to run even when the equipment is shutdown and can be trolley mounted for portable use on multiple systems. Air-driven units and double pot units available.
  • Effective filtration solution
  • Air-driven Units available
  • Test point installed for easy and efficient oil sampling
  • Designed with high quality components for heavy duty environments

Service & Maintenance on the Bypass Filtration Units

Replacement filter elements and consumables are available for outright purchase or as part of a tailored lubricant maintenance service program.

SPECs

Part no.

Flow rate:

Flow Suply:

Flow Return:

Mounting Bracket:

Relief Pressure:

Pressure Gauge:

Fluid Sampling Point:

Total Weight:

Motor:

B32

BU32 Housing Unit

1.5ltrs / minute

from tank

free flow back to tank

Universal Mounting Bracket

5.5 bar / 80 psi

0 to 10 bar

Test 20

7kg Dry Weight

B100

BU100 Housing Unit

3ltrs / minute

from tank

free flow back to tank

Universal Mounting Bracket

5.5 bar / 80 psi

0 to 16 bar

Test 20

10kg Dry Weight

MB100MKII

MB100-MkII

3ltrs / minute

from tank

free flow back to tank

Universal Mounting Bracket

5.5 bar / 80 psi

0 to 16 bar

Test 20

14kg Dry Weight

415v 50Hz 0.37kw 1440 rpm Single Phase 240volt 50hz

B32

Call for Spec Sheet

Part no.

BU32 Housing Unit

Flow Rate:

1.5ltrs / minute

Fluid Supply:

from tank

Fluid Return:

free flow back to tank

Mounting Bracket:

Universal Mounting Bracket

Relief Pressure:

5.5 bar / 80 psi

Pressure Gauge:

0 to 10 bar

Fluid Sampling Point:

Test 20

Total Weight:

7kg Dry Weight

Bu100

Call for Spec Sheet

Part no.

BU100 Housing Unit

Flow Rate:

3ltrs / minute

Fluid Supply:

from tank

Fluid Return:

free flow back to tank

Mounting Bracket:

Universal Mounting Bracket

Relief Pressure:

5.5 bar / 80 psi

Pressure Gauge:

0 to 16 bar

Fluid Sampling Point:

Test 20

Total Weight:

10kg Dry Weight

MB100-MKII

Call for Spec Sheet

Part no.

MB100-MkII

Flow Rate:

3ltrs / minute

Fluid Supply:

from tank

Fluid Return:

free flow back to tank

Mounting Bracket:

Universal Mounting Bracket

Relief Pressure:

5.5 bar / 80 psi

Pressure Gauge:

0 to 16 bar

Fluid Sampling Point:

Test 20

Total Weight:

14kg Dry Weight

Motor:

415v 50Hz 0.37kw 1440 rpm Single Phase 240volt 50hz

FAQ...

The process of removing water from a diesel system requires specialist equipment, like the KPL1000.

Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Yes the model of filtration system is capable of being used in hazardous locations.  This is achieve with the use of an air operated option.
